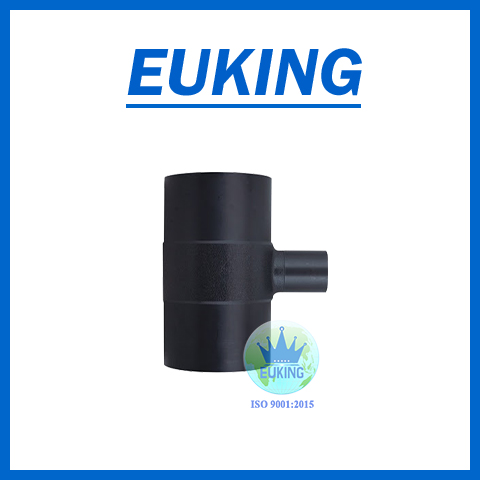

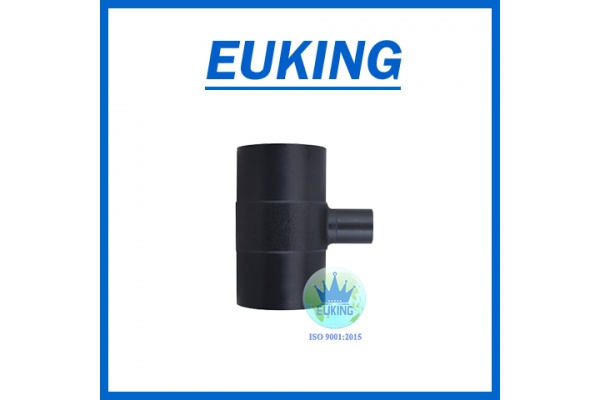

Tê Thu Hàn HDPE : Phụ kiện dùng để chia đường ống HDPE xuống nhánh kích thước nhỏ hơn, dùng phương pháp hàn đối đầu.
Tê Thu Hàn HDPE : Phụ kiện dùng để chia đường ống HDPE xuống nhánh kích thước nhỏ hơn, dùng phương pháp hàn đối đầu.

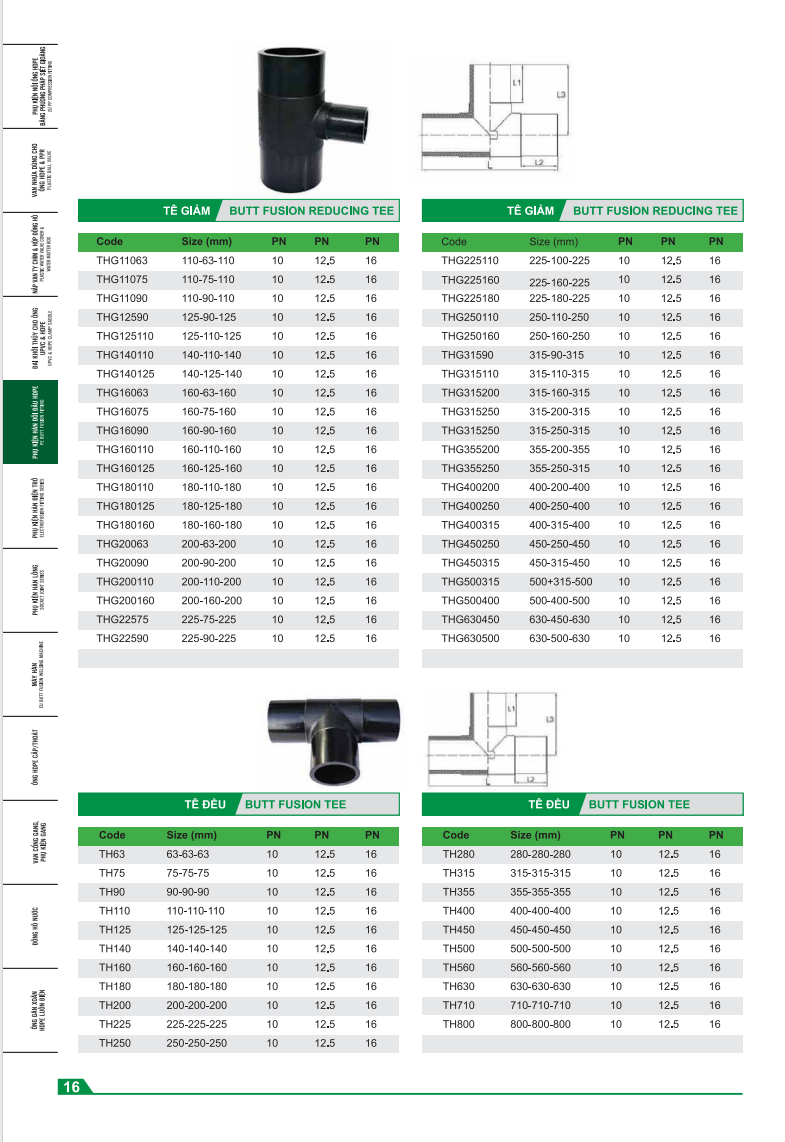

THÔNG SỐ KỸ THUẬT
| Kích thước | Áp lực PN10 | Áp lực PN16 |
|---|---|---|
| (mm) | (Độ dày mm) | (Độ dày mm) |
| 63 x 50 x 63 | 3.8 x 3.0 x 3.8 | 5.8 x 4.6 x 5.8 |
| 75 x 50 x 75 | 4.5 x 3.0 x 4.5 | 6.8 x 4.6 x 6.8 |
| 75 x 63 x 75 | 4.5 x 3.8 x 4.5 | 6.8 x 5.8 x 6.8 |
| 90 x 50 x 90 | 5.4 x 3.0 x 5.4 | 8.2 x 4.6 x 8.2 |
| 90 x 63 x 90 | 5.4 x 3.8 x 5.4 | 8.2 x 5.8 x 8.2 |
| 90 x 75 x 90 | 5.4 x 4.5 x 4.5 | 8.2 x 6.8 x 8.2 |
| 110 x 50 x 110 | 6.6 x 3.0 x 6.6 | 10.0 x 4.6 x 10.0 |
| 110 x 63 x 110 | 6.6 x 3.8 x 6.6 | 10.0 x 5.8 x 10.0 |
| 110 x 75 x 110 | 6.6 x 4.5 x 6.6 | 10.0 x 6.8 x 10.0 |
| 110 x 90 x 110 | 6.6 x 5.4 x 6.6 | 10.0 x 8.2 x 10.0 |
| 125 x 63 x 125 | 7.4 x 3.8 x 7.4 | 11.4 x 5.8 x 11.4 |
| 125 x 75 x 125 | 7.4 x 4.5 x 7.4 | 11.4 x 6.8 x 11.4 |
| 125 x 90 x 125 | 7.4 x 5.4 x 7.4 | 11.4 x 8.2 x 11.4 |
| 125 x 110 x 125 | 7.4 x 6.6 x 7.4 | 11.4 x 10.0 x 11.4 |
| 140 x 63 x 140 | 8.3 x 3.8 x 8.3 | 12.7 x 5.8 x 12.7 |
| 140 x 75 x 140 | 8.3 x 4.5 x 8.3 | 12.7 x 6.8 x 12.7 |
| 140 x 90 x 140 | 8.3 x 5.4 x 8.3 | 12.7 x 8.2 x 12.7 |
| 140 x 110 x 140 | 8.3 x 6.6 x 8.3 | 12.7 x 10.0 x 12.7 |
| 140 x 125 x 140 | 8.3 x 7.4 x 8.3 | 12.7 x 11.4 x 12.7 |
| 160 x 63 x 160 | 9.5 x 3.8 x 9.5 | 14.6 x 5.8 x 14.6 |
| 160 x 75 x 160 | 9.5 x 4.5 x 9.5 | 14.6 x 6.8 x 14.6 |
| 160 x 90 x160 | 9.5 x 5.4 x 9.5 | 14.6 x 8.2 x 14.6 |
| 160 x 110 x 160 | 9.5 x 6.6 x 9.5 | 14.6 x 10.0 x 14.6 |
| 160 x 125 x 160 | 9.5 x 7.4 x 9.5 | 14.6 x 11.4 x 14.6 |
| 180 x 90 x 180 | 10.7 x 5.4 x 10.7 | 16.4 x 8.2 x 16.4 |
| 180 x 110 x 180 | 10.7 x 6.6 x 10.7 | 16.4 x 10.0 x 16.4 |
| 180 x 160 x 180 | 10.7 x 9.5 x 10.7 | 16.4 x 14.6 x 16.4 |
| 200 x 63 x 200 | 11.9 x 3.8 x 11.9 | 18.2 x 5.8 x 18.2 |
| 200 x 75 x 200 | 11.9 x 4.5 x 11.9 | 18.2 x 6.8 x 18.2 |
| 200 x 90 x 200 | 11.9 x 5.4 x 11.9 | 18.2 x 8.2 x 18.2 |
| 200 x 110 x 200 | 11.9 x 6.6 x 11.9 | 18.2 x 10.0 x 18.2 |
| 200 x 125 x 200 | 11.9 x 7.4 x 11.9 | 18.2 x 11.4 x 18.2 |
| 200 x 160 x 200 | 11.9 x 9.5 x 11.9 | 18.2 x 14.6 x 18.2 |
| 225 x 63 x 225 | 13.4 x 3.8 x 13.4 | 20.5 x 5.8 x 20.5 |
| 225 x 75 x 225 | 13.4 x 4.5 x 13.4 | 20.5 x 6.8 x 20.5 |
| 225 x 90 x 225 | 13.4 x 5.4 x 13.4 | 20.5 x 8.2 x 20.5 |
| 225 x 110 x 225 | 13.4 x 6.6 x 13.4 | 20.5 x 10.0 x 20.5 |
| 225 x 160 x 225 | 13.4 x 9.5 x 13.4 | 20.5 x 14.6 x 20.5 |
| 225 x 200 x 225 | 13.4 x 11.9 x 13.4 | 20.5 x 18.2 x 20.5 |
| 250 x 63 x 250 | 14.8 x 3.8 x 14.8 | 22.7 x 5.8 x 22.7 |
| 250 x 75 x 250 | 14.8 x 4.5 x 14.8 | 22.7 x 6.8 x 22.7 |
| 250 x 90 x 250 | 14.8 x 5.4 x 14.8 | 22.7 x 8.2 x 22.7 |
| 250 x 110 x 250 | 14.8 x 6.6 x 14.8 | 22.7 x 10.0 x 22.7 |
| 250 x 160 x 250 | 14.8 x 9.5 x 14.8 | 22.7 x 14.6 x 22.7 |
| 250 x 200 x 25 | 14.8 x 11.9 x 14.8 | 22.7 x 18.2 x 22.7 |
| 250 x 225 x 250 | 14.8 x 13.4 x 14.8 | 22.7 x 20.5 x 22.7 |
| 280 x 110 x 280 | 16.6 x 6.6 x 16.6 | 25.4 x 10.0 x 25.4 |
| 280 x 160 x 280 | 16.6 x 9.5 x 16.6 | 25.4 x 14.6 x 25.4 |
| 280 x 200 x 280 | 16.6 x 11.9 x 16.6 | 25.4 x 18.2 x 25.4 |
| 280 x 250 x 280 | 16.6 x 14.8 x 16.6 | 25.4 x 22.7 x 25.4 |
| 315 x 90 x 315 | 18.7 x 5.4 x 18.7 | 28.6 x 8.2 x 28.6 |
| 315 x 110 x 315 | 18.7 x 6.6 x 18.7 | 28.6 x 10.0 x 28.6 |
| 315 x 125 x 315 | 18.7 x 74 x 18.7 | 28.6 x 11.4 x 28.6 |
| 315 x 160 x 315 | 18.7 x 9.5 x 18.7 | 28.6 x 14.6 x 28.6 |
| 315 x 200 x 315 | 18.7 x 11.9 x 18.7 | 28.6 x 18.2 x 28.6 |
| 315 x 225 x 315 | 18.7 x 13.4 x 18.7 | 28.6 x 20.5 x 28.6 |
| 315 x 250 x 315 | 18.7 x 14.8 x 18.7 | 28.6 x 22.7 x 28.6 |
| 355 x 110 x 355 | 21.1 x 6.6 x 21.1 | 32.2 x 10.0 x 32.2 |
| 355 x 160 x 355 | 21.1 x 9.5 x 21.1 | 32.2 x 14.6 x 32.2 |
| 355 x 200 x 355 | 21.1 x 11.9 x 21.1 | 32.2 x 18.2 x 32.2 |
| 355 x 250 x 355 | 21.1 x 14.8 x 21.1 | 32.2 x 22.7 x 32.2 |
| 355 x 315 x 355 | 21.1 x 18.7 x 21.1 | 32.2 x 28.6 x 32.2 |
| 400 x 110 x 400 | 23.7 x 6.6 x 23.7 | 36.3 x 10.0 x 36.3 |
| 400 x 160 x 400 | 23.7 x 9.5 x 23.7 | 36.3 x 14.6 x 36.3 |
| 400 x 200 x 400 | 23.7 x 11.9 x 23.7 | 36.3 x 18.2 x 36.3 |
| 400 x 250 x 400 | 23.7 x 14.8 x 23.7 | 36.3 x 22.7 x 36.3 |
| 400 x 315 x 400 | 23.7 x 18.7 x 23.7 | 36.3 x 28.6 x 36.3 |
| 450 x 110 x 450 | 26.7 x 6.6 x 26.7 | 40.9 x 10.0 x 40.9 |
| 450 x 160 x 450 | 26.7 x 9.5 x 26.7 | 40.9 x 14.6 x 40.9 |
| 450 x 200 x 450 | 26.7 x 11.9 x 26.7 | 40.9 x 18.2 x 40.9 |
| 450 x 250 x 450 | 26.7 x 14.8 x 26.7 | 40.9 x 22.7 x 40.9 |
| 450 x 315 x 450 | 26.7 x 18.7 x 26.7 | 40.9 x 28.6 x 40.9 |
| 450 x 400 x 450 | 26.7 x 23.7 x 26.7 | 40.9 x 36.3 x 40.9 |
